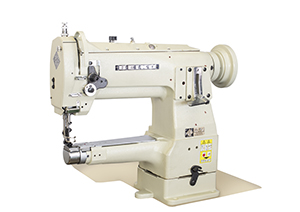

Single needle, High speed, Narrow Cylinder bed, Horizontal axis hook,
Compound feed and walking foot, Reverse stitch, Lockstitch machines.

pdf
LSC-8B-1_300x276

LSC-8B-2

Variety LSC-8B-2
Max.sewing speed 2,300s.p.m.
Max.stitch length 6mm
Clearance under
presser foot
13mm(by knee)
8mm(by hand)
Needle bar stroke 33.2mm
Needle(Standard) DPx17 #18
135×17 #110
Hook Horizontal axis hook
Amount of walking
foot movement
3-6mm(Standard 4mm)
Lubrication Semi-automatic lubrication type
Cylinder size 46mm
Variety
  • LSC-8B-2
    Standard hook.
  • LSC-8BV-2
    Standard hook, synchronized binder.
  • LSC-8BLV-1
    Large hook, synchronized binder.
  • LSC-8BLH-1
    Large hook, horizontal feed.
  • LSC-8BHC
    Standard hook, thread trimmer,
    horizontal feed.
Applications
  • For sewing medium to heavy weight fabrics, leather,
    vinyl, synthetics and laminated and coated materials.
  • Suitable for tubular and curved products with narrow openings
    such as hats, caps, shoes, bags, handbags, etc.
