Extra he avy duty, Extra long arm, Extra large vertical axis hook,
Compound feed and walking foot, Reverse stitch, Lockstitch machines.
pdf

JW-28BL-30-3_400x186

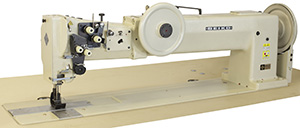

JW-28BL-30-3

Variety JW-28BL-30-3
Max.sewing speed 1,200s.p.m.
Max.stitch length 10mm
Clearance under
presser foot		 23mm(by pedal)
20mm(by hand)
Needle bar stroke 46.8mm
Needle(Standard) DYx3 #24
Hook Special extra large vertical axis hook
Amount of walking
foot movement		 6-9mm(Standard 6mm)
Lubrication Semi-automatic lubrication type
Working space 762×153mm
Variety
  • JW-8BL-30-3
    Single needle, 30 inch machine arm.
  • JW-8BLA-30-3
    Single needle, 30 inch machine arm, for thick thread.
  • JW-28BL-30-3
    Two needle, 30 inch machine arm.
  • JW-28BLA-30-3
    Two needle, 30 inch machine arm, for thick thread.
Applications
  • For sewing extra heavy weight materials such as canvas, vinyl, leather, synthetics, and various coated, laminated and rubberized fabric.
  • Suitable for sewing such as tents, tarps, awnings, truck covers, auto marine and furniture upholstery, field covers, fabric structures and heavy bulky products.
