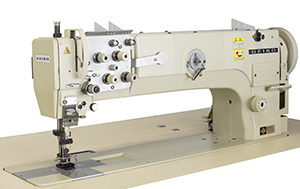

20 inch long arm and high arm, Large vertical axis hook,
Compound feed and walking foot, Reverse stitch, Lockstitch machine.
pdf

LSWNH-20-1_300x207

LSWNH-28BL-20-1-BTFL

Variety LSWNH-28BL-20-1-BTFL
Max.sewing speed 1,500s.p.m.
Max.stitch length 10mm
Clearance under
presser foot		 16mm(by pedal)
8.5mm(by hand)
Needle bar stroke 37mm
Needle(Standard) DPx17 #22
135×17 #140
Hook Large vertical axis hook (2.0times)
Amount of walking
foot movement		 3-6mm(Standard 4mm)
Lubrication Semi-automatic lubrication type
Working space 516×150mm
Variety
  • LSWNH-8BL-20-1
    Single needle, 20inch long arm.
  • LSWNH-8BL-20-1-BTFL
    Single needle, automatic back tack,automatic presser foot lift, 20inch long arm.
  • LSWNH-8BL-20-1-TA-BTFL
    Single needle, automatic back tack,automatic presser foot lift, for thick thread, 20inch long arm.
  • LSWNH-28BL-20-1
    Two needle, 20inch long arm.
  • LSWNH-28BL-20-1-BTFL
    Two needle, automatic back tack,automatic presser foot lift, 20inch long arm.
  • LSWNH-28BL-20-1-TA-BTFL
    Two needle, automatic back tack,automatic presser foot lift, for thick thread, 20inch long arm.
Applications
  • For sewing medium to heavy weight materials such as leather, vinyl, synthetics and laminated and coated materials.
  • Suitable for sewing such as tents, covers, sails, awnings, tarpaulins, automobile upholstery.
