High speed, Large vertical axis hook,
Compound feed and walking foot,Reverse stitch,
Lockstitch machines.		 pdf
LSW-8BLVMF_300x224

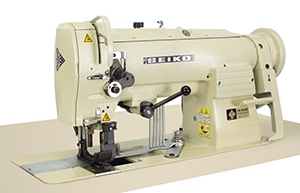

LSW-8BLVMF

Variety LSW-8BLVMF
Max.sewing speed 2,500s.p.m.
Max.stitch length 6.2mm
Clearance under
presser foot		 12mm(by knee)
8.5mm(by hand)
Needle bar stroke 33.2mm
Needle(Standard) MTx190(#19)
190R(#120)
Hook Large vertical axis hook (2.0times)
Amount of walking
foot movement		 3-6mm(Standard 4mm)
Lubrication Automatic lubrication type
Variety
  • LSW-8BLM
    Vertical edge trimming(right)
  • LSW-8BLVMF
    Vertical edge trimming (front), synchronized binder(*)
Applications
  • For sewing medium to heavy weight fabrics, leather, vinyl,
    synthetics and laminated and coated materials.
  • Designed for operation such as tape binding, edge trimming for
    quilt, cushion, cover and automobile-interior.

(*)Available various special binder at extra charge.
