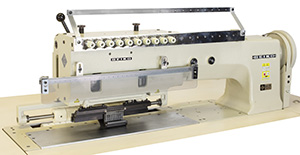

SSLD series
Heavy duty, Ultra long arm, Compound feed and walking foot,
Clutch driven puller feed, Double chain stitch machines. |
 |
| Variety |
SSLD-28R |
| Max.sewing speed |
1,200s.p.m. |
| Max.stitch length |
9mm |
Clearance under
presser foot |
15mm |
| Needle bar stroke |
39mm |
| Needle(Standard) |
DVx59 #22, 62×59 #140
|
| Thread |
#8(Standard) |
Amount of walking
foot movement |
2-5.8mm(Standard 3.6mm) |
| Lubrication |
Hand type |
| Working space |
508x122mm |
| Variety |
- SSLD-□8R
2-9 needles(*)
- SSLD-□□8R
10-18 needles(*)
- LD-8
Single needle, Compound feed and walking foot.
- LD-28
Two needle, Compound feed and walking foot.
- LD-38
Three needle, Compound feed and walking foot.
- LD-48
Four needle, Compound feed and walking foot.
- LD-58
Five needle, Compound feed and walking foot.
- LD-68
Six needle, Compound feed and walking foot.
|
| Applications |
- For sewing medium to heavy weight fabric, leather, canvas, denim, synthetics, and various coated and laminated materials.
- Suitable for automobile upholstery, carpets, mattresses, etc.
|
(*)Min. distance between needles is 1/4″(6.4mm).
