Single needle, Extra heavy duty, Large oscillating shuttle hook,
Reverse stitch, Long arm, Cylinder bed, Lockstitch machines.
pdf
CH-8B_300x221

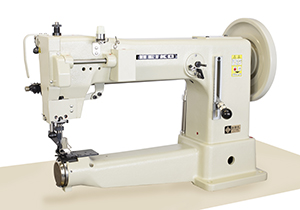

CH-8B

Variety CH-8B
Max.sewing speed 800s.p.m.
Max.stitch length 10mm
Clearance under
presser foot		 25mm(by pedal)
10mm(by hand)
Needle bar stroke 56mm
Needle(Standard) DYx3 #24
794 #180
Hook Large oscillating shuttle hook
Amount of walking
foot movement		 3-6mm(Standard 4mm)
Lubrication Hand type
Cylinder size 82mm
Variety
  • CH-8B
    Compound feed and walking foot.
Applications
  • For sewing heavy weight materials such as canvas, vinyl, leather, synthetics and various coated, laminated and rubberized fabrics.
  • Suitable for sewing tubular and curved work, etc.
