Single needle, High speed, Narrow Cylinder bed, Horizontal axis hook,
Compound feed and walking foot, Reverse stitch, Lockstitch machines.
pdf
BSC-8BL_300x253

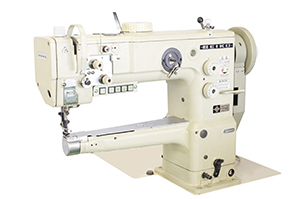

BSC-8BL

Variety BSC-8BL
Max.sewing speed 2,300s.p.m.
Max.stitch length 7mm
Clearance under
presser foot		 16mm(by knee)
9mm(by hand)
Needle bar stroke 35.4mm
Needle(Standard) DPx17 #18
135×17 #110
Hook Large Horizontal axis hook(2.0times)
Amount of walking
foot movement		 1-6mm
Lubrication Automatic lubrication type
Cylinder size 46mm
Working space 350x120mm
Variety
  • BSC-8B
    Standard hook.
  • BSC-8BL
    Large hook.
  • BSC-8BV
    Standard hook, synchronized binder.
  • BSC-8BLV
    Large hook, synchronized binder.
  • BSC-8BLH
    Large hook, horizontal feed.
  • BSC-8BHC
    Standard hook, thread trimmer,
    horizontal feed.
Applications
  • For sewing medium to heavy weight fabrics, leather,
    vinyl, synthetics and laminated and coated materials.
  • Suitable for tubular and curved products with narrow openings
    such as hats, caps, shoes, bags, handbags, etc.
