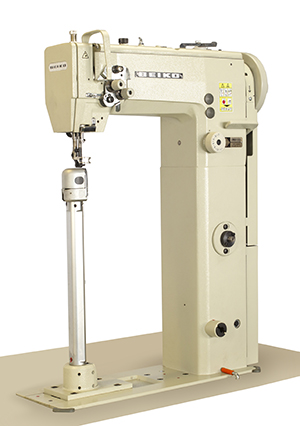

Single needle, High speed, Extra high post bed, Compound feed
and walking foot, Reverse stitch, left post, Lockstitch machines.
pdf
LHPWN-8B-4-SF-LP_300x459

LHPWN-8B-4-SF-LP

Variety LHPWN-8B-4-SF-LP
Max.sewing speed 1,200s.p.m.
Max.stitch length 7mm
Clearance under
presser foot		 16mm(by pedal)
10mm(by hand)
Needle bar stroke 35.4mm
Needle(Standard) DPx17 #25
135×17 #200
Hook Vertical axis hook
Amount of walking
foot movement		 2.7-5.5mm
Lubrication Semi-automatic lubrication type
Post height 445mm
Variety
  • LHPWN-8B-4-SF-LP
    Slim post, standard vertical axis hook.
  • LHPWN-8B-4-TA-SF-LP
    Slim post, standard vertical axis hook, for thick thread.
  • LHPWN-8BL-4-LP
    Large vertical axis hook(2.0times).
Applications
  • For sewing medium to heavy weight materials such as leather,
    vinyl, synthetics and laminated and coated materials.
  • Suitable for sewing such products as bags, boots, travel cases
    and automobile upholstery.
